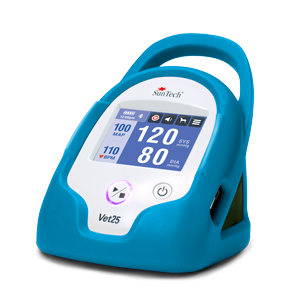

The SunTech Vet25 Veterinary Blood Pressure Monitor gives Veterinarians an accurate, fast, portable, and easy to use monitor to perform procedural and continuous non-invasive blood pressure monitoring on awake dogs and cats before and after procedures.
The SunTech Vet25 Veterinary Blood Pressure Monitor quickly and easily provides reliable blood pressure measurements for wellness exams, spot-checks, and while monitoring companion animals before and after procedures. With the Vet25, users can set intervals to automatically monitor and measure systolic and diastolic pressures and heart rate.
Utilizing SunTech Medical’s trusted, animal-specific Advantage VET BP technology, the Vet25 performs motion-tolerant BP measurements, delivering accurate results with no shaving or gel. The Vet25 is light, portable, and small enough to carry between rooms, making it convenient for both patients and providers. The monitor is battery operated and can also be powered by a universal A/C adapter that recharges the battery when plugged in. Using Bluetooth, BP data can be transferred to the trending and reporting PC application that comes standard with the Vet25.
SunTech Medical is a Fear Free Preferred Product Provider
Features
Features
With the SunTech Vet25, offers the following features and benefits:
-
Reliability: Due to SunTech’s motion tolerant technology, the Vet25 has a high success rate for BP readings.
-
Simplicity of Use: Intuitive touch screen interface provides all necessary features for reviewing, analyzing, and transferring BP data. Designed for animal hospitals, not researchers.
-
Accuracy: BP algorithm was specifically developed for companion animals by experts at a leading vet school.
-
Continuous Monitoring: Monitoring during procedures is simple with user-defined intervals for BP measurement.
-
Memory: Up to 960 data points are retained, even when device is powered off. User can select specific measurement from device memory and perform automated BP averaging.
-
Portability: Battery-operated device easily moved to different monitoring locations.
-
Rechargeable: Battery recharges when device is plugged into AC power, reducing disposable battery waste.
-
Data Transfer: Data can be transferred to a data trending and reporting software application for a PC using Bluetooth. Use the PC application to export reports in either PDF or CSV format.
Clinical Evidence
SunTech’s veterinary products are not human devices re-packaged. We used data from companion animals to develop our SunTech Vet BP technology. In fact, our SunTech Vet BP technology has passed the ACVIM blood pressure protocol on anesthetized dogs and here’s a link to the journal article in Veterinary Anaesthesia and Analgesia. Click here to read a third-party study on SunTech Vet BP technology in anesthetized cats.
To request a quote for the SunTech Vet 25, simply click here.
Learn more about the full line of BP cuffs that are available with the Vet 25 BP monitor, by clicking here.
Documents
Documents
Downloads:
SunTech Vet25 Brochure English 816.75 KB
Brochure for the SunTech Vet25.
- Part Number
- 82-0519-00
- Revision
- G
- Document Type
- MA
- Changed
- Monday, 01 May 2023 11:19
SunTech Vet25 Brochure German 818.52 KB
SunTech Vet25 Brochure
- Part Number
- 82-0519-04
- Revision
- E
- Document Type
- MA
- Changed
- Friday, 28 April 2023 13:51
SunTech Vet25 Brochure French 829.43 KB
SunTech Vet25 Brochure
- Part Number
- 82-0519-02
- Revision
- E
- Document Type
- MA
- Changed
- Friday, 28 April 2023 13:49
SunTech Vet25 Brochure Italian 817.43 KB
SunTech Vet25 Brochure
- Part Number
- 82-0519-03
- Revision
- E
- Document Type
- MA
- Changed
- Friday, 28 April 2023 13:48
SunTech Vet25 Brochure Spanish 824.82 KB
SunTech Vet25 Brochure
- Part Number
- 82-0519-05
- Revision
- E
- Document Type
- MA
- Changed
- Friday, 28 April 2023 13:48
SunTech Vet25 Brochure Portuguese 820.46 KB
SunTech Vet25 Brochure
- Part Number
- 82-0519-06
- Revision
- E
- Document Type
- MA
- Changed
- Friday, 28 April 2023 13:47
SunTech Vet25 Brochure (A4) English 819.31 KB
Brochure for the SunTech Vet25 in A4 format.
- Part Number
- 82-0519-01
- Revision
- G
- Document Type
- MA
- Changed
- Monday, 01 May 2023 11:18
SunTech Vet25 Quick Start Guide 703.65 KB
Quick Start Guide for the SunTech Vet25.
- Part Number
- 82-0512-00
- Revision
- C
- Document Type
- MA
- Changed
- Friday, 28 April 2023 13:41
SunTech Vet25 User Manual English 1.21 MB
User manual for the SunTech Vet25.
- Part Number
- 80-0076-00
- Revision
- G
- Document Type
- MO
- Changed
- Monday, 01 May 2023 11:16
SunTech Vet25 User Manual French 1.3 MB
User manual for the SunTech Vet25.
- Part Number
- 80-0076-01
- Revision
- C
- Document Type
- MO
- Changed
- Friday, 28 April 2023 13:58
SunTech Vet25 User Manual German 1.21 MB
User manual for the SunTech Vet25.
- Part Number
- 80-0076-02
- Revision
- C
- Document Type
- MO
- Changed
- Friday, 28 April 2023 13:58
SunTech Vet25 User Manual Italian 1.2 MB
User manual for the SunTech Vet25.
- Part Number
- 80-0076-03
- Revision
- C
- Document Type
- MO
- Changed
- Friday, 28 April 2023 13:57
SunTech Vet25 User Manual Spanish 1.2 MB
User manual for the SunTech Vet25.
- Part Number
- 80-0076-04
- Revision
- C
- Document Type
- MO
- Changed
- Friday, 28 April 2023 13:56
SunTech Vet25 User Manual Portuguese 1.21 MB
User manual for the SunTech Vet25.
- Part Number
- 80-0076-05
- Revision
- C
- Document Type
- MO
- Changed
- Friday, 28 April 2023 13:56
SunTech Vet25 User Manual Chinese 1.52 MB
SunTech Vet25 User Manual
- Part Number
- 80-0076-06
- Revision
- A
- Document Type
- MO
- Changed
- Friday, 28 April 2023 13:40
Parts & Specs
Parts & Specs
Standard Configurations
Description | Part Number | Purchase |
---|---|---|
|
99-0170-00 | |
|
99-0170-01 | |
|
99-0170-02 |
Accesories & Replacement Parts
Description | Part Number | Details | Purchase |
---|---|---|---|
Cuff #1 | 98-0400-80-VET | 3 – 6 cm, white, non-locking, box of 20 | Buy Now |
Cuff #2 | 98-0400-81-VET | 4 – 8 cm, white, non-locking, box of 20 | Buy Now |
Cuff #3 | 98-0400-82-VET | 6 – 11 cm, white, non-locking, box of 20 | Buy Now |
Cuff #4 | 98-0400-83-VET | 7 – 13 cm, white, non-locking, box of 20 | Buy Now |
Cuff #5 | 98-0400-84-VET | 8 – 15 cm, white, non-locking, box of 20 | Buy Now |
Cuff #6 | 98-0400-F1 | 12 – 19 cm, white, non-locking, box of 20 | |
Cuff #7 | 98-0400-F3 | 17 – 25 cm, white, non-locking, box of 20 | |
Patient Hose | 91-0028-72 | 4 ft (1.2m), black | |
Patient Hose | 91-0028-75 | 6 ft (1.8m), black | |
Patient Hose | 91-0028-76 | 10 ft (3m), black | |
Cuffs #1-6 | 98-0240-00 | 17 – 25 cm, white, non-locking, pack of 6 |
Optional Components
Description | Part Number | Details | Purchase |
---|---|---|---|
A/C Power Adapter | 19-0020-00 | AC Adapter | |
Vet25 Armour | 39-0195-03 | Protective Cover - Flamingo Pink | |
Vet25 Armour | 39-0195-04 | Protective Cover - Peacock Blue | |
Vet25 Armour | 39-0195-02 | Protective Cover - Tree Frog Green | |
Battery Replacement | 17-0026-00 | Lithium-ion Battery Replacement for SunTech Vet25 | Contact us at 1-800-421-8626 |
Veterinary BP Cuffs | 98-0240-00 | 6 pack of Cuffs Sized #1-6 | |
Vet Carrying Case | 45-0010-00 | Nylon bag for protection and transport of monitor and accessories | Buy Now |
Monitor Pole Mounting Kit | 98-0259-00 | Mount your SunTech Vet20, Vet 25 or Vet30 monitor to an IV Pole or Deluxe Mobile Stand | Buy Now |
Deluxe Mobile Stand | 46-0040-00 | Rolling stand for use with SunTech Vet monitors | Buy Now |
Technical Specifications
Specifications | Values |
---|---|
Method of Measurement: | Oscillometric |
Blood Pressure Range: |
|
Pulse Rate Range: | 25 to 300 BPM (Beats Per Minute) |
Cuff Deflate Rate: | Deflation step size varies with heart rate, cuff pressure and cuff volume |
Initial Inflation Pressure: | 180 mmHg (default) |
Subsequent initial inflation: | previous Systolic + 30 mmHg |
Transducer Accuracy: | ±3mmHg between 0 mmHg and 300 mmHg |
Transducer Calibration: | Recommended bi-annually or if a calibration problem is suspected |
Operating Conditions: | 0°C to 50°C, 15% to 90% non-condensing humidity |
Storage Conditions: | -20°C to 65°C, 15% to 90% non-condensing humidity |
Altitude: | Measurement accuracy not affected by altitude |
Power: | Lithium-Ion battery. |
A/C Power Adapter - Input: | 100-240v ~ 47-63Hz 0.48A Max, Output: 5.9V 3A 17.7W Max |
Dimensions: | 6.25” x 5” x 5.25” (15.9cm x 12.7cm x 13.3cm) |
Weight: | 2.1 lbs (953 grams) with battery |
Warranty: | 2 years on the monitor |
FAQs
FAQs
How many measurements can I store in Memory?
You can store up to 960 measurements. The monitor has a revolving memory. When you take your 961st measurement, it will be listed as measurement #1.
How do I delete data from memory?
Select the Memory button and touch the Delete button. Before the memory is cleared, you will be asked to confirm or cancel the deletion. When you clear the Memory, you delete all measurements for all parameters.
For medium-sized dogs, which animal mode do I choose?
Use cuff size as the determination factor. If a #3 cuff or smaller is the best fit, choose small animal mode. If #4 or larger, choose large animal mode.
How do I choose the correct cuff size?
Wrap the cuff around the patient’s limb and make sure the index line falls within the range marker. If two different cuff sizes fit the patient, choose the larger size.
How long will the battery last?
When interval BP measurements are set for every 5 minutes, a fully charged battery should last at least 4 hours before requiring recharging. If only taking manual BP measurements, a fully charged battery should last for at least 150 BP measurements before requiring recharging. Fully charging the battery should take under 6 hours. Battery life is very dependent on the touch screen display ON time. To maximize life, SunTech suggests setting the Auto OFF timer to 1 minute.
Can I use this monitor on awake and anesthetized animals?
Yes. The Vet25 can be used on anesthetized animals as well as awake animals.
How do I keep the cuff from slipping down the limb or coming off?
Attach the cuff as tight as possible. Extra attention will be needed on species with dense or thick fur. If the cuff will not stay attached, check the hook & loop for fur and remove if possible.
Are there other power options?
Yes. The device is provided with a mains power supply that recharges the internal battery when connected. When the monitor is not connected to the power supply, the battery will allow the unit to be portable for use.
What are the minimum and maximum cat & dog weights when taking measurements?
There are none. Any cat or dog that has a limb that fits within the cuff ranges is acceptable.
end faq
Videos
Videos
The Complete Vet BP Solution: Introducing the Vet25 & Vet30
If most of your patients tend to be furry and have four legs, then you can benefit from a reliable way to measure BP and vital signs that is fast, simple and silent. Utilizing an animal-specific BP algorithm with our motion-tolerant technology, our product line allows you to choose the BP and vital signs solution that works for your veterinary practice. Whether you need BP for wellness check-ups or a multiparameter monitor during procedures, we can find the solution for you.
SunTech Vet BP: Selecting the Correct BP Cuff Size
Instructional video to assist veterinary staff on choosing the correct BP cuff size for placement on the front forelimb or the animal’s tail when taking BP measurements on cats and dogs.
SunTech Vet BP: Proper BP Cuff Placement
Instructional video to help veterinary staff with applying a blood pressure cuff correctly on the limb or tail of a dog or cat. This video also provides guidance on animal position and how that relates to cuff placement.
SunTech Vet25: How to Measure Blood Pressure
This video demonstrates the proper way to measure blood pressure using the SunTech Vet25 Spot-Check & Continuous BP Monitor for companion animals.
SunTech Vet20 vs Doppler
In this video, you will watch as Tucker gets his blood pressure taken using two different methods during a typical visit to his veterinarian. The left side of the screen will show the measurement being taken with the SunTech Vet20, an oscillometric blood pressure device. The right side of the screen shows the measurement using a Parks 811-B Ultrasonic Doppler Flow Detector.
SunTech Vet BP Universal Cuff Pack Instructions
This video demonstrates how to convert any Vet Blood Pressure air hose to fit the SunTech Vet BP line of cuffs.
Distributors
Distributors
SunTech Vet BP Distributors
Country | Distributor | Website | Contact |
---|---|---|---|
Andorra | B Braun Vetcare S.A. | Website | +34 902 47 47 01 |
Argentina | Guzman SRL | Website | +54 11 5263 2083 |
Australia | Provet | Website | +61 8 9241 8400 |
Australia | Sound Veterinary | Website | +61 1300 881 681 |
Australia | Mediquip | Website | +61 1300 246 349 |
Bolivia | El Cristo | Website | +591 75322299 |
Brazil | TRADEVET | Website | (41) 3023-6189 |
Canada | Eickemeyer | Website | 519-273-5558 |
Canada | McCarthy & Sons | Website | 1(800) 461 8615 |
Canada | Patterson Veterinary | Website | 1(800) 225 7911 |
Caribbean | Lighthouse Medical Supplies | Website | (441) 777-LITE (5483) |
Chile | Master Medical | Website | +56 9 9430 6887 |
China | Suntech Medical (Shenzhen) Co., Ltd. | Website | +86 755 29588810 |
Colombia | Internacional Vet | Website | (+57 1) 7045281 |
Costa Rica | Innovett | Website | +506 2203 5854 |
Ecuador | Disprovef | Website | +593 96 987 9086 |
El Salvador | Innovett | Website | +506 2203 5854 |
France | France Collectivite’s | Website | +33 1 75 61 18 59 |
Guatemala | Top Trade Company | Website | +502-53-8-7936 |
Honduras | Innovett | Website | +506 2203 5854 |
Hong Kong | Suntech Medical (Shenzhen) Co., Ltd. | Website | +86 755 29588810 |
Indonesia | IDSMED Indonesia | Website | +62 21 5366 8989 |
Israel | Medi Market | Website | 09-8844452 |
Italy | Demas Foschi | Website | +39 06 417905 800 |
Japan | SMI Japan | Website | +81 3 5829 9079 |
Korea | Hanmimed | Website | +82 2 3431 8040 |
Korea | Provet | Website | +82 2 323 4881 |
Macao | Suntech Medical (Shenzhen) Co., Ltd. | Website | +86 755 29588810 |
Malaysia | TransAid Solutions | Website | +60 3 7621 1301 |
Mexico | Maico | Website | (81) 83 73 68 102 |
Myanmar | Crown Veterinary Resources | Website | This email address is being protected from spambots. You need JavaScript enabled to view it. |
Netherlands | NL Pharma Veterinair B.V. | Website | This email address is being protected from spambots. You need JavaScript enabled to view it. |
New Zealand | Shoof International | Website | +64 7 827 3902 |
Nicaragua | Innovett | Website | +506 2203 5854 |
Peru | Suiza Vet Diagnostico | Website | +51 1 6406500 |
Portugal | B Braun Vetcare S.A. | Website | +34 902 47 47 01 |
Puerto Rico | MNM Veterinary Supply Corporation | Website | 866-877-1636 |
Romania | Daisy Medical | Website | This email address is being protected from spambots. You need JavaScript enabled to view it. |
Russia | Balf | Website | 8 (800) 333-13-98 |
Singapore | Medical Plus | Website | +65 6271 6558 |
South Africa | Kahma Vet | Website | This email address is being protected from spambots. You need JavaScript enabled to view it. |
South Korea | Provet Co. Ltd. | Website | +82 2 323 4881 |
Spain | B Braun Vetcare S.A. | Website | +34 902 47 47 01 |
Switzerland | Provet AG | Website | +41 (0) 34 448 11 11 |
Taiwan | APEX Process Technology Corp. | Website | +886 7 9735135 |
Thailand | IDSMed Thailand | Website | +66 2 349 4780 |
United Kingdom | Henry Schein Animal Health | Website | +44(0)1387 262626 |
USA | MWI Animal Health | Website | +1(800) 824 3703 |
USA | Midwest Vet Supply | Website | +1(800) 328 2975 |
USA | Patterson Veterinary | Website | +1 (800) 225 7911 |
USA | Penn Veterinary | Website | 1(800) 233 0210 |
USA | Digicare | Website | +1(561) 689 0408 |
USA | Victor Medical Company | Website | 1(800) 888 8908 |
USA | DRE Veterinary | Website | 1(877) 688 1149 |
Venezuela | Innovett | Website | +506 2203 5854 |
Software
Software
Please fill out the form below to receive the Vet Data Capture Software
DISCLAIMER: This is a beta version of the Vet Data Capture application that has not been fully tested. Should you encounter any bugs, please email SunTech at This email address is being protected from spambots. You need JavaScript enabled to view it.. Also, please enter your name and email address below, and we will contact you when the fully tested version is available.
